Ñuñoa Clinic, Santiago, Chile

Shoring and formwork suiting highest demands
Hospital located in the Ñuñoa Commune that is going to relieve the Santiago hospital network.

Description

Hospital located in the Ñuñoa Commune that is going to relieve the Santiago hospital network. Its 23,000 m2 surface include 5 floors, 150 beds and 3 basements floors, and will ensure full health care.

ULMA Solution

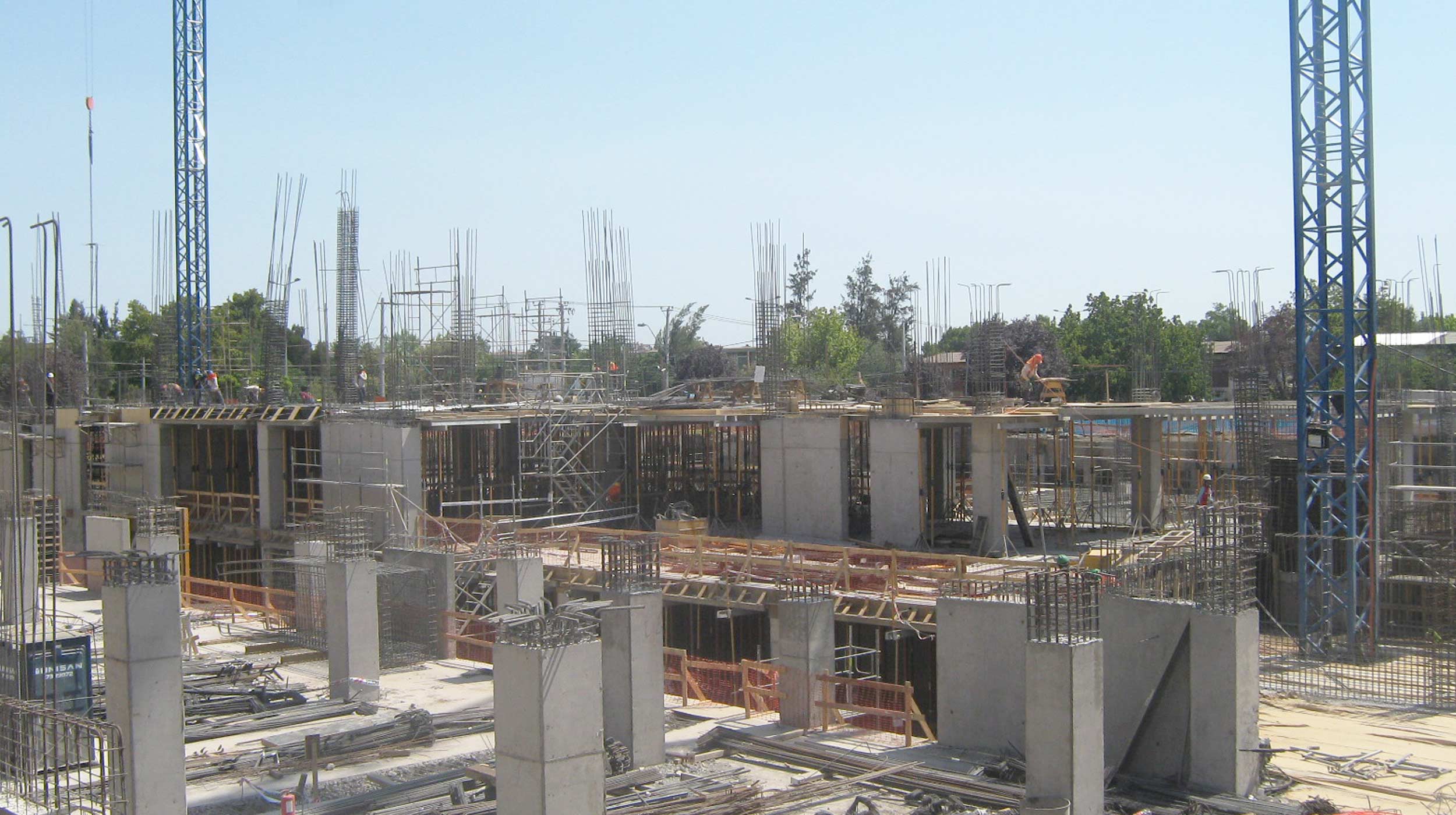

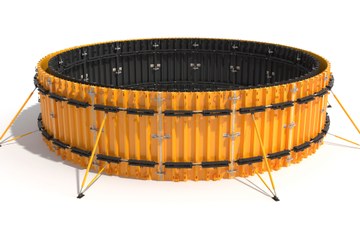

ORMA vertical formwork with symmetric modulations was used for fair-faced walls and columns. The curved walls of the staircases were built with BIRA, a circular steel formwork that enables the required finishing.

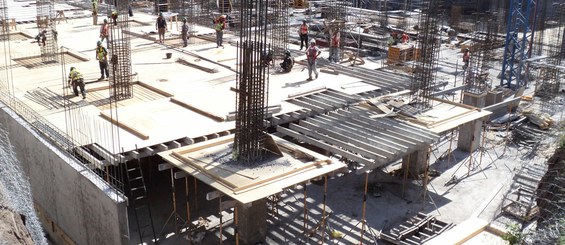

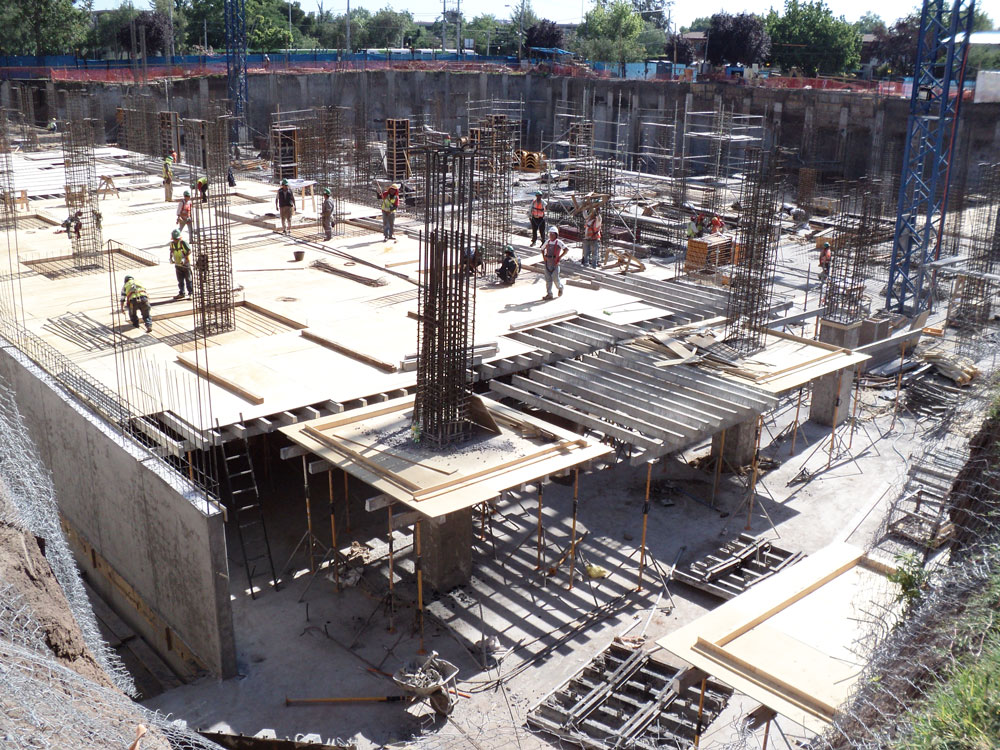

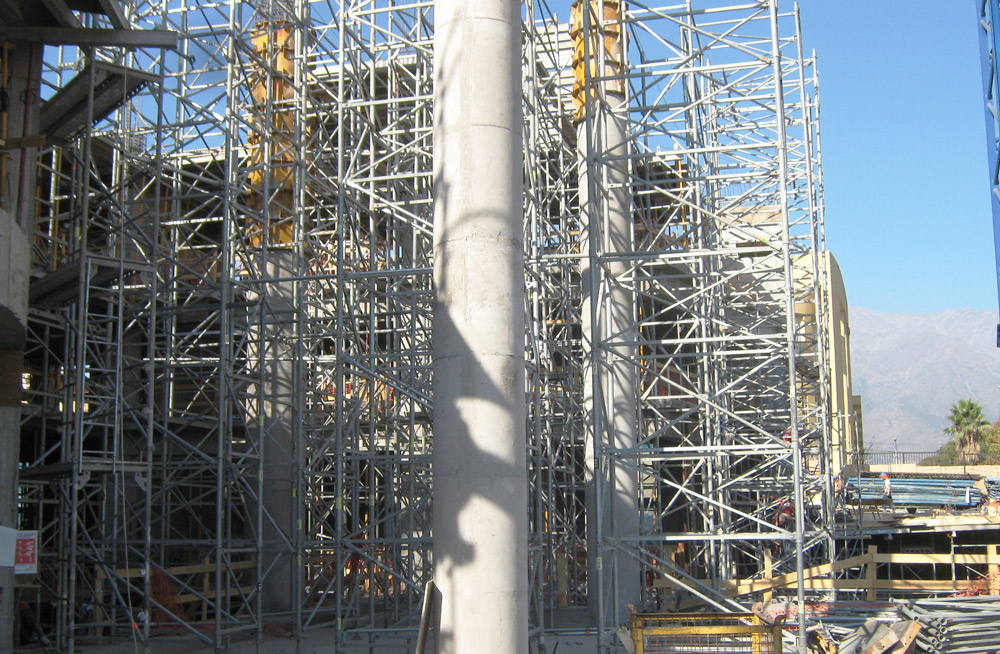

The post-tensioned slabs were built with the steel beam system BTM shored on SP Props. The shoring of the high access area was accomplished with T-60 Shoring. With easily assembled towers requiring few parts, these systems were widely accepted on the building site for their ease of overcoming unevenness on the ground and their great efficiency.
