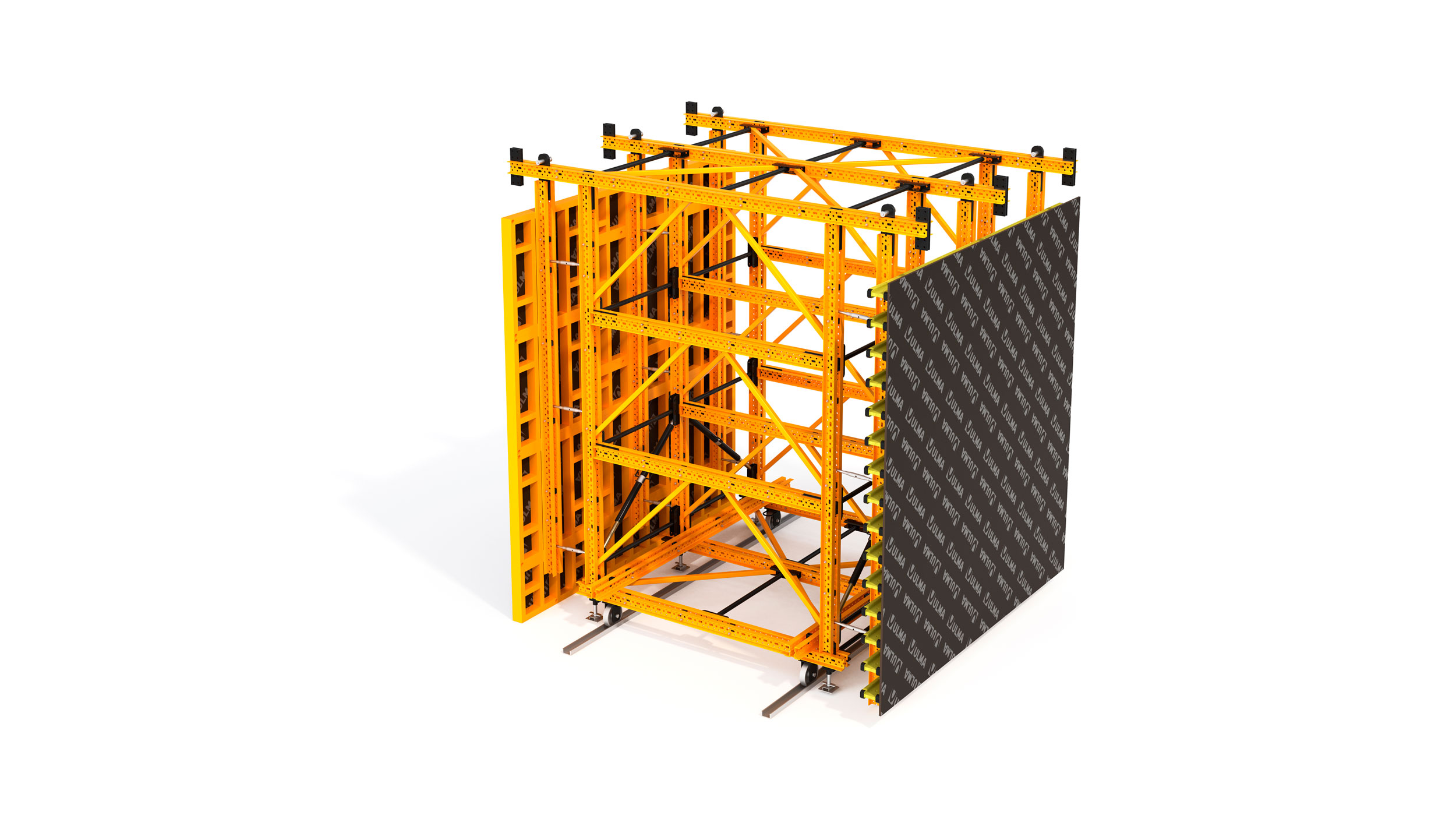

Wall Formwork Carriage MK

Movable system for the construction of very long single or double-sided concrete walls. Easy formwork erection and stripping.
Movable system for the construction of very long single or double-sided concrete walls. Easy formwork erection and stripping.

Form carrier for wall formwork, designed for erection and stripping work of very long single-or double-sided concrete walls.

The only vertical loads acting on the structure are generated by the weight of the structure and the formwork.

  • Main structure: is the structure bearing the concrete loads, both vertical and horizontal.
  • Forward-moving structure: is the secondary structure which effects the movement and bears the forces during such movement.
  • Formwork: is the part in touch with the concrete and shaping it.
  • Bracing: these are the components that withstand wind effects and transverse movements.
  • Rolling and levelling system: set of components that enable the rolling of the truss and its levelling at a specific place, as well as its stripping.
  • Safety and access components: working platforms, handrails etc.
  • Eases and simplifies formwork erection and stripping work and formwork movement.
